BMW M4 F82 / M3 F80, E92, E46 Ohlins Upgrade

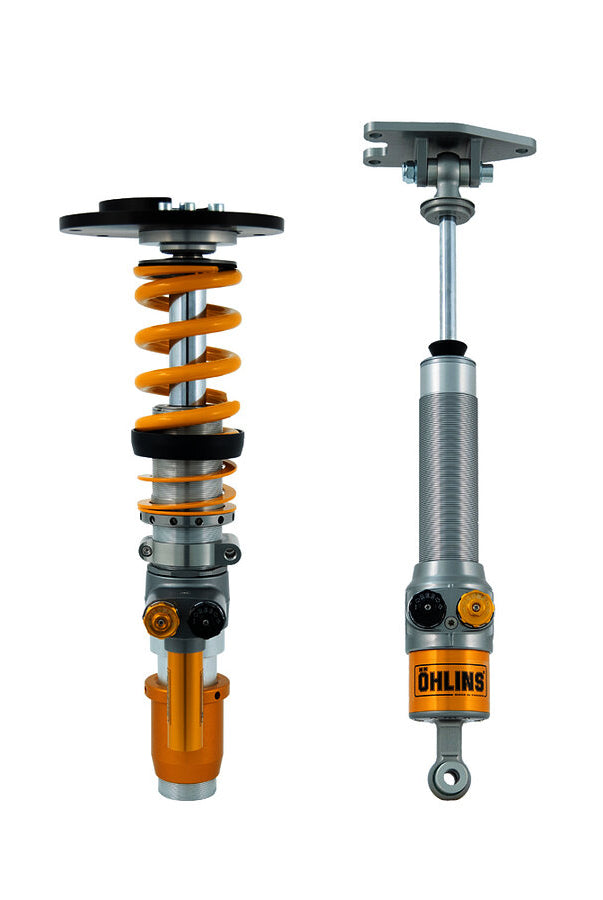

Ohlins have developed a range of compatible coilover kits to suit individual BMW chassis which are fully serviceable by BG Motorsport right here in the UK. The Ohlins designed shock absorbers offer damping and rebound adjusters to ensure comfort on bumpy back roads as well as optimum performance when finding the limits on a track. So whatever your driving style you can have your car responding accordingly.

M4 – Part No. BMSGMP40, F82, 2013-
M3 – Part No. BMSGMP40, F80, 2013-
M3 – Part No. BMSMI40, E92, 2007-2013
M3 – Part No. BMSMI30, E46, 2001-2006

General Features

• DFV (Dual Flow Valve) • Rebuildable • Corrosion salt spray tested (ISO 9227) • 2 year Limited Warranty • Height adjustable M3 E92, M3 E46

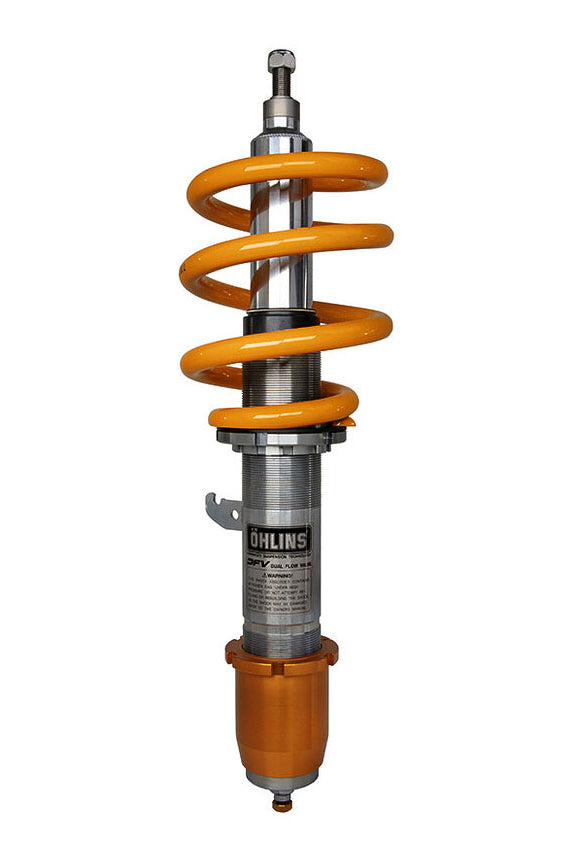

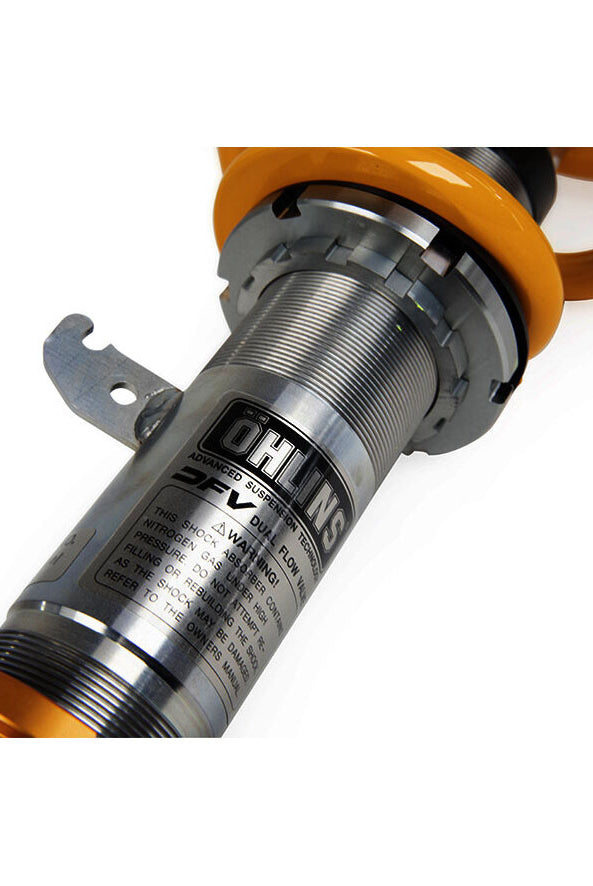

FRONT

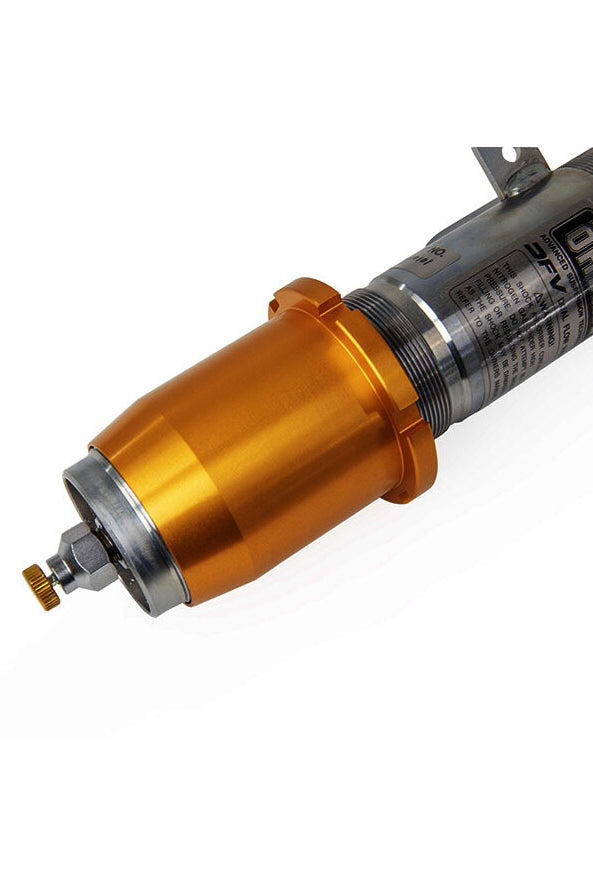

• McPherson Strut • Single bleed adjuster • Spring preload adjuster (approx. 10 mm lower than standard) M4 F82, M3 F80 • Spring preload adjuster (approx. 15 mm lower than standard) M3 E92 • Spring preload adjuster (approx. 20 mm lower than standard) M3 E46 • Coil springs (rate 90 N/mm) M3 F80, M4 F82 • Coil springs (rate 60 N/mm) M3 E92 • Coil springs (rate 70 N/mm) M3 E46 • Dustcovers • Use with original top mounts

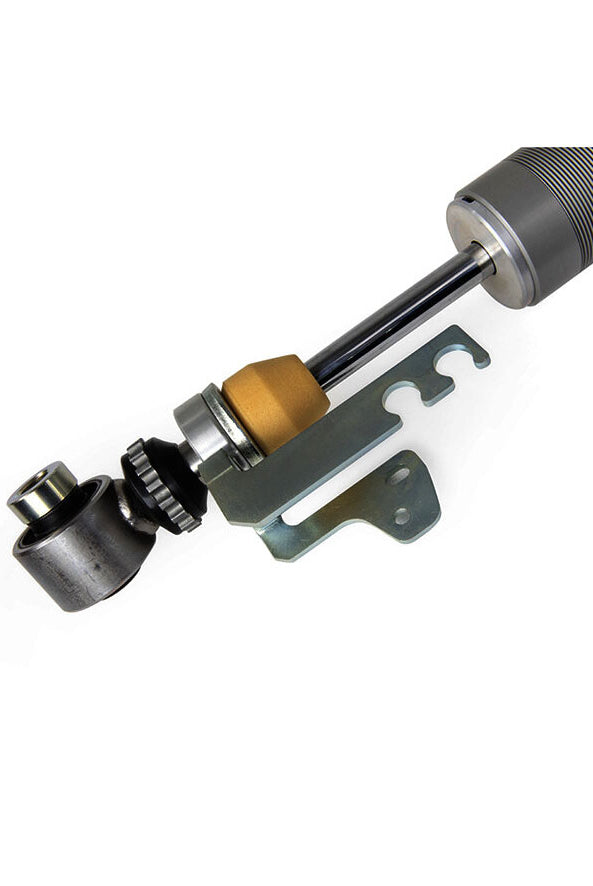

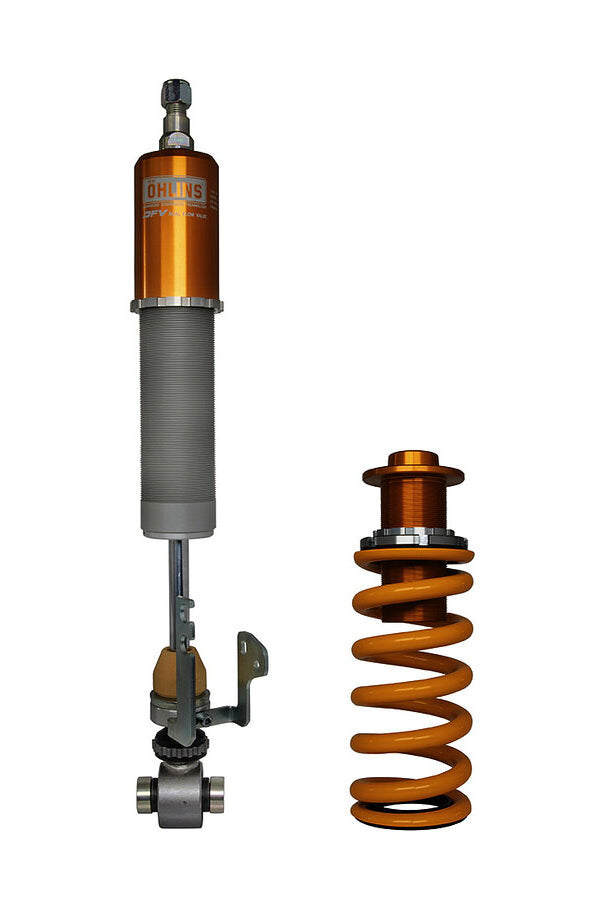

REAR

• Conventional shock absorber • Single bleed adjuster • Separate spring preload adjuster (approx. 10 mm lower than standard) M4 F82, M3 F80, M3 E92 • Separate spring preload adjuster (approx. 10 mm lower than standard) M3 E46 • Coil springs (rate 230 N/mm) M4 F82, M3 F80 • Coil springs (rate 120 N/mm) M3 E92 • Coil springs (rate 110 N/mm) M3 E46 • Dustcovers • Use with original top mounts
